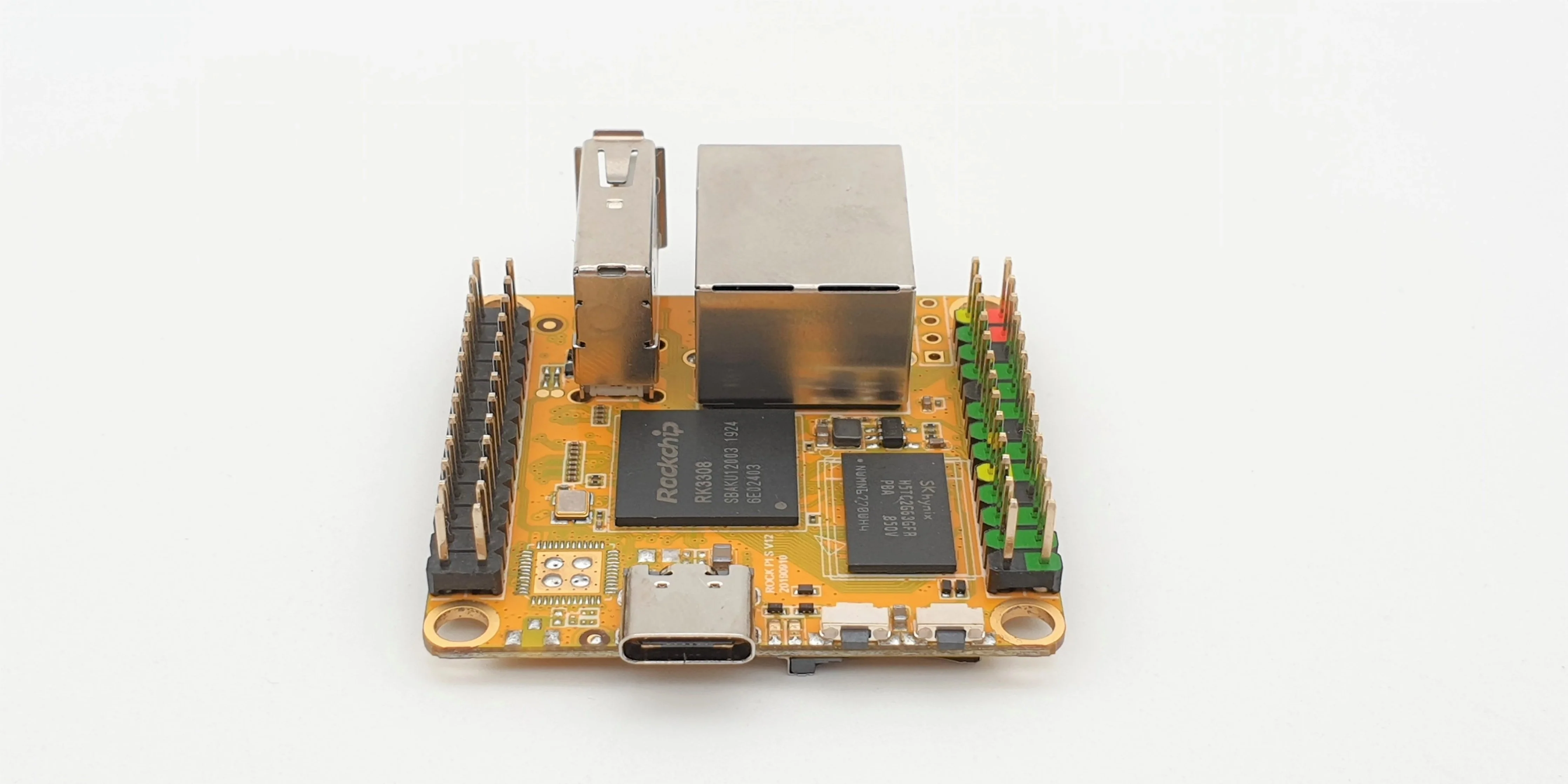

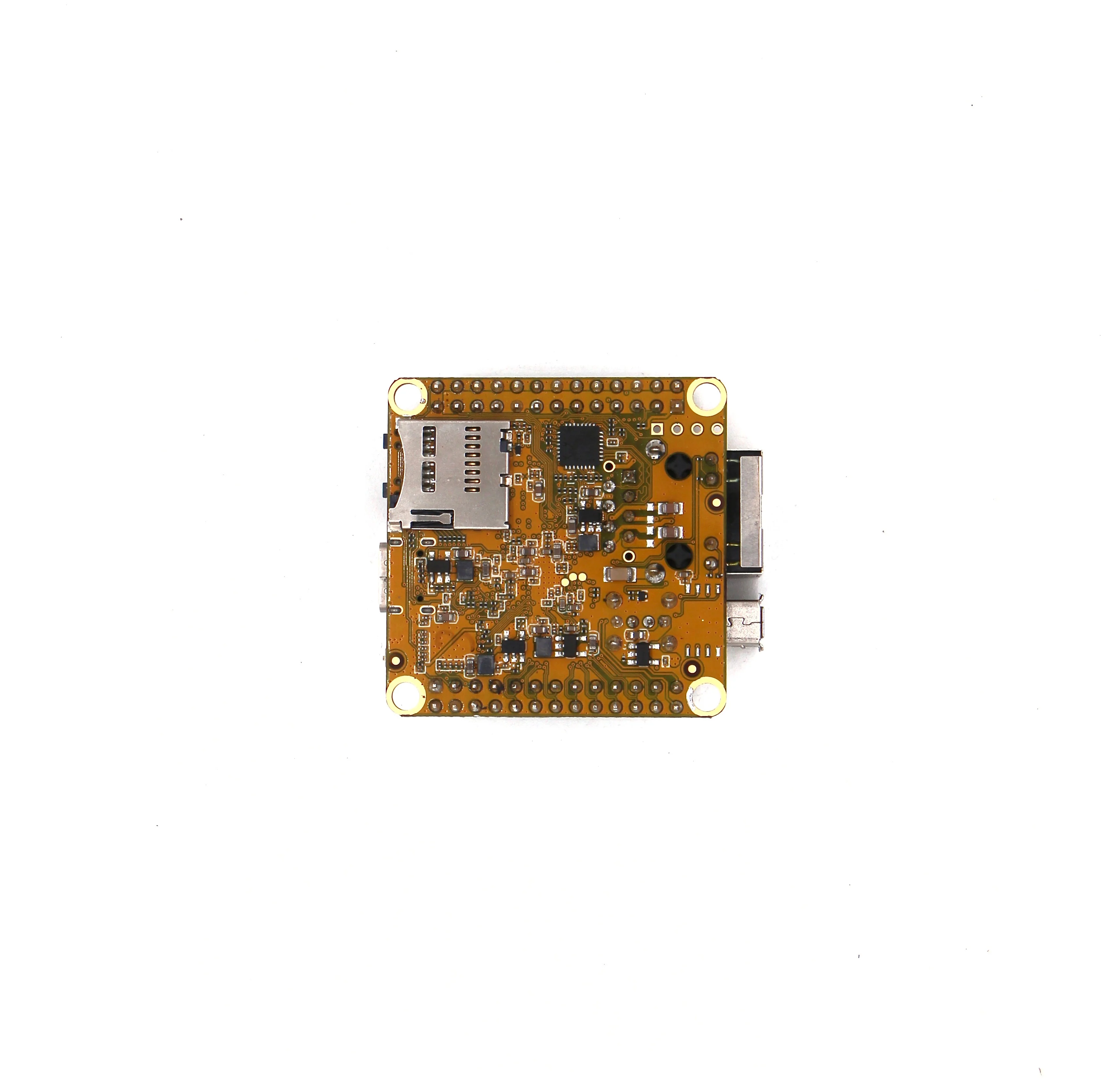

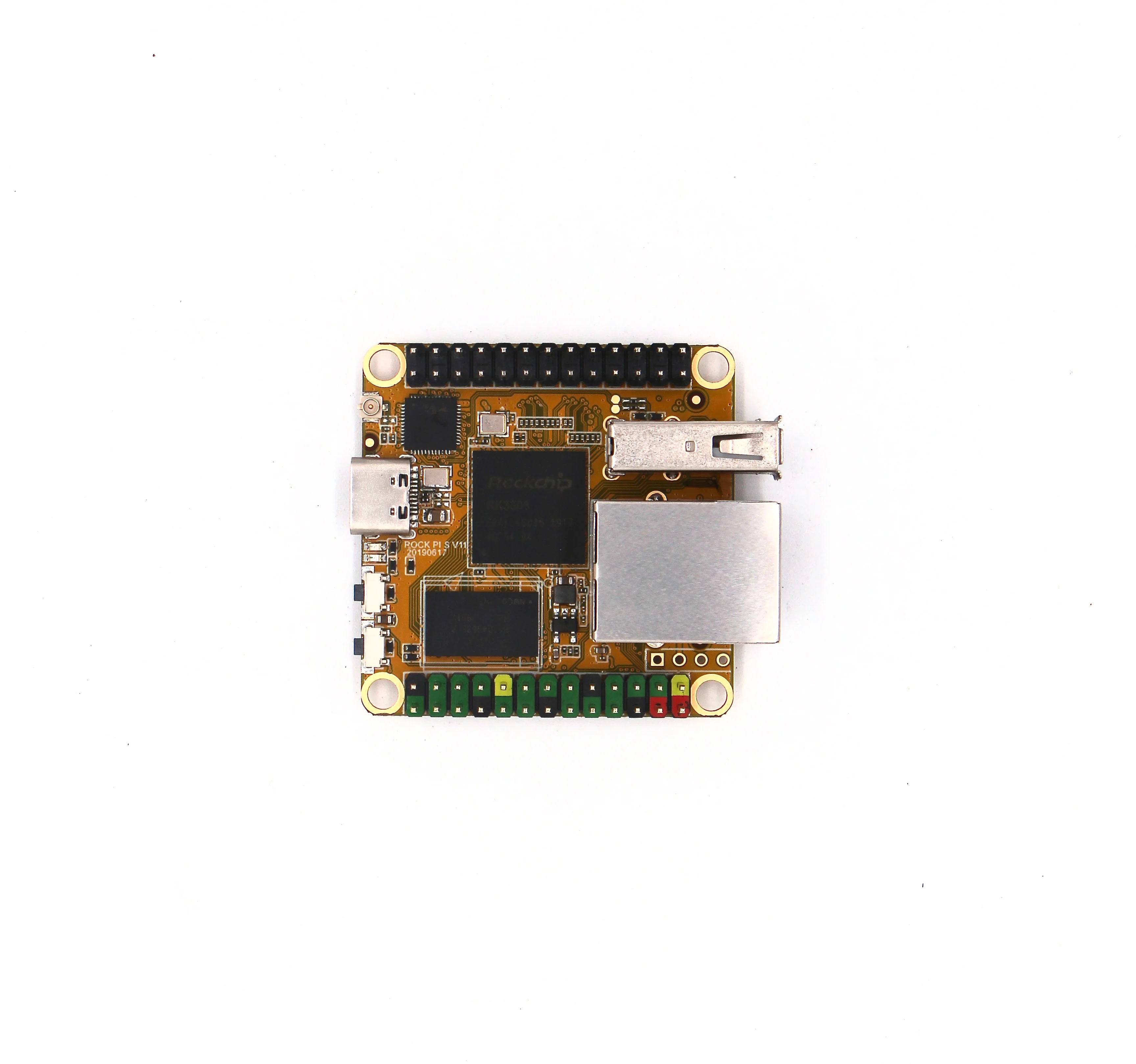

ROCK PI S v1.3

Rockchip RK3308 64bit quad core based mini SBC

An extremely "rocking" mini computer for your projects!

• Rockchip RK3308 Quad A35 64bit processor with built-in VAD
• 256 / 512MB RAM versions
• USB 2.0 OTG (type C) + USB 2.0 HOST (type A)
• RJ45 10/100Mbit Ethernet
• when choosing the PoE variant an additional PoE HAT is required
• 802.11 b/g/n Wifi + Bluetooth 4.0 with external antenna connector
• 26 pin GPIO header
• 26 pin voice/audio header includes I2S, PCM, TDM, PDM, SPDIF, and HDMI ARC
• Size 1.7x1.7inch (~38.1x38.1mm)
• Debian, Ubuntu, Armbian and Slackware ARM support
• Optional - ROCK Pi S on board storage version with 1Gb/2Gb/4Gb/8Gb SLC NAND flash (data protection in case of power failure)
• Power demand idle: 0.5W / full load: 2.8W
• CPU does not need any heat management!

FURTHER DETAILS ON ROCK PI S FROM STARTER TO DEVELOPER

Main documentation page on Rock Pi S

In depth technical details on Rock Pi S

Getting started with Rock Pi S

GPIO pinout of the Rock Pi S

Development tips on the Rock Pi S

Please check the variants and corresponding prices
