RADXA Zero 3W

Rockchip RK3566 64bit quad core based Mini SBC

Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.

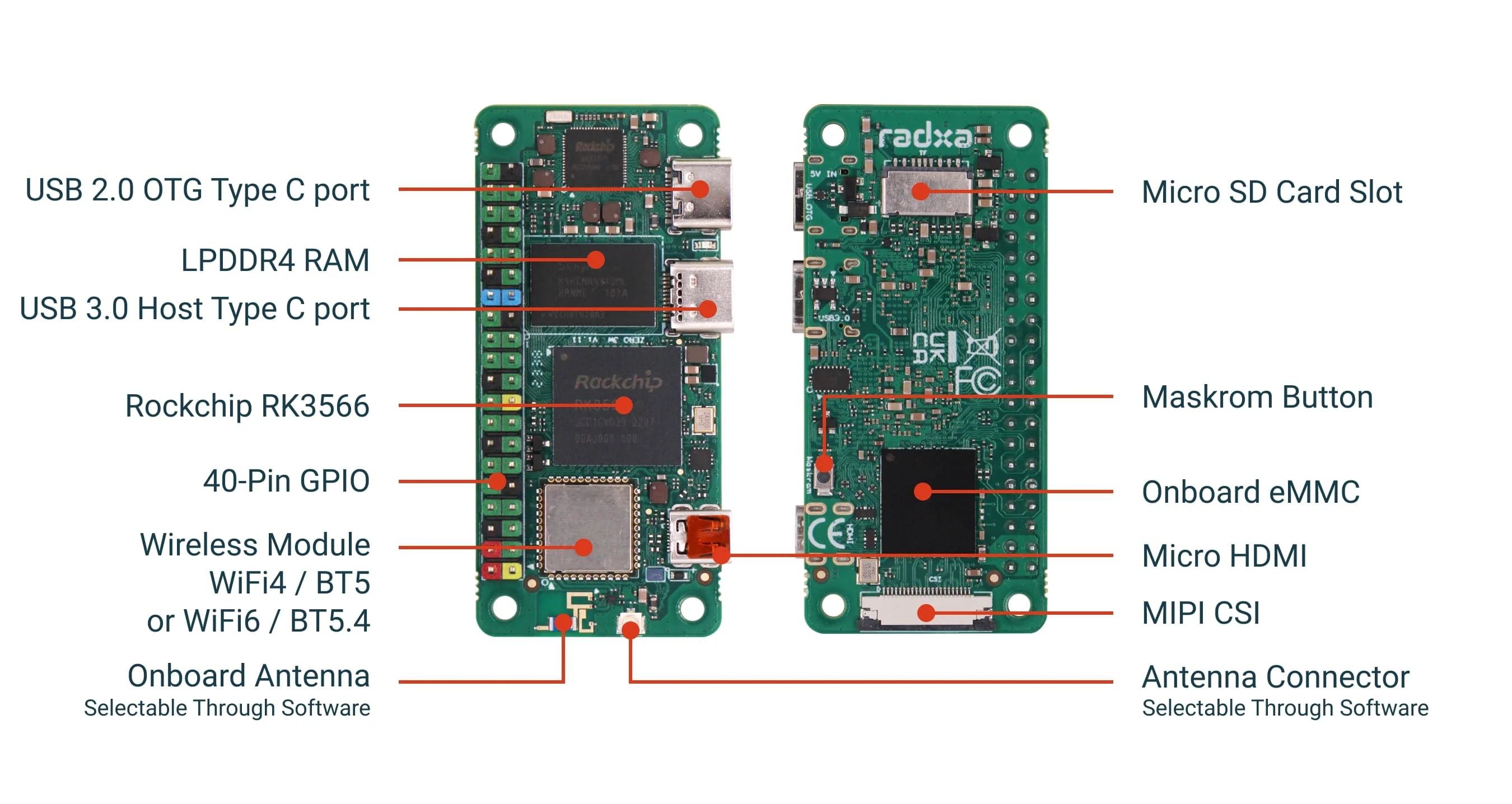

RADXA Zero 3W product details

Rockchip RK3566 64bit quad core processor

Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz

GPU

Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0

Memory LPDDR4

LPDDR4 1GB /2GB /4GB /8GB

WiFi/BT onboard (WiFi4+BT/WiFi6+BT5.4)

WiFi4 (802.11 a/b/g/n) /BT with onboard antenna and uFL connector*

WiFi6 (802.11 a/b/g/n/ac/ax) /BT5.4 with onboard antenna and uFL connector*

* antenna option can be configured via software

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB/ 32GB/ 64GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

1080p@60fps via Micro HDMI

Peripherie

H.264/H.265 decoder up to 4K@60fps

H.264/H265 encoder up to 1080p@60fps

USB 3.0 Type-C HOST x1

USB 3.0 HOST

USB 2.0 Type-C OTG x1

USB 2.0 OTG (for power and data)

MIPI CSI x1

MIPI CSI Camera Interface

Network

Wireless 802.11 abgn, WiFi4, Bluetooth 5.0

Wireless 802.11 abgn/ac/ax, WiFi6, Bluetooth 5.4

IO 40-pin expansion header (depending on the model):

- up to 5 x UART
- 1 x SPI bus
- up to 2 x I2C bus
- 1 x PCM/I2S
- up to 6 x PWM
- up to 28 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian/Ubuntu Linux support
- Hardware access/control library for Linux

Others

Maskrom button

Size 65mm x 30mm



Essentials You Need

• RADXA ZERO 3W
• Power adapter with USB type C port equal or larger than 5W
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input

______________________________________________________

Additional information & Setup instructions

https://docs.radxa.com/zero/zero3/getting-started
