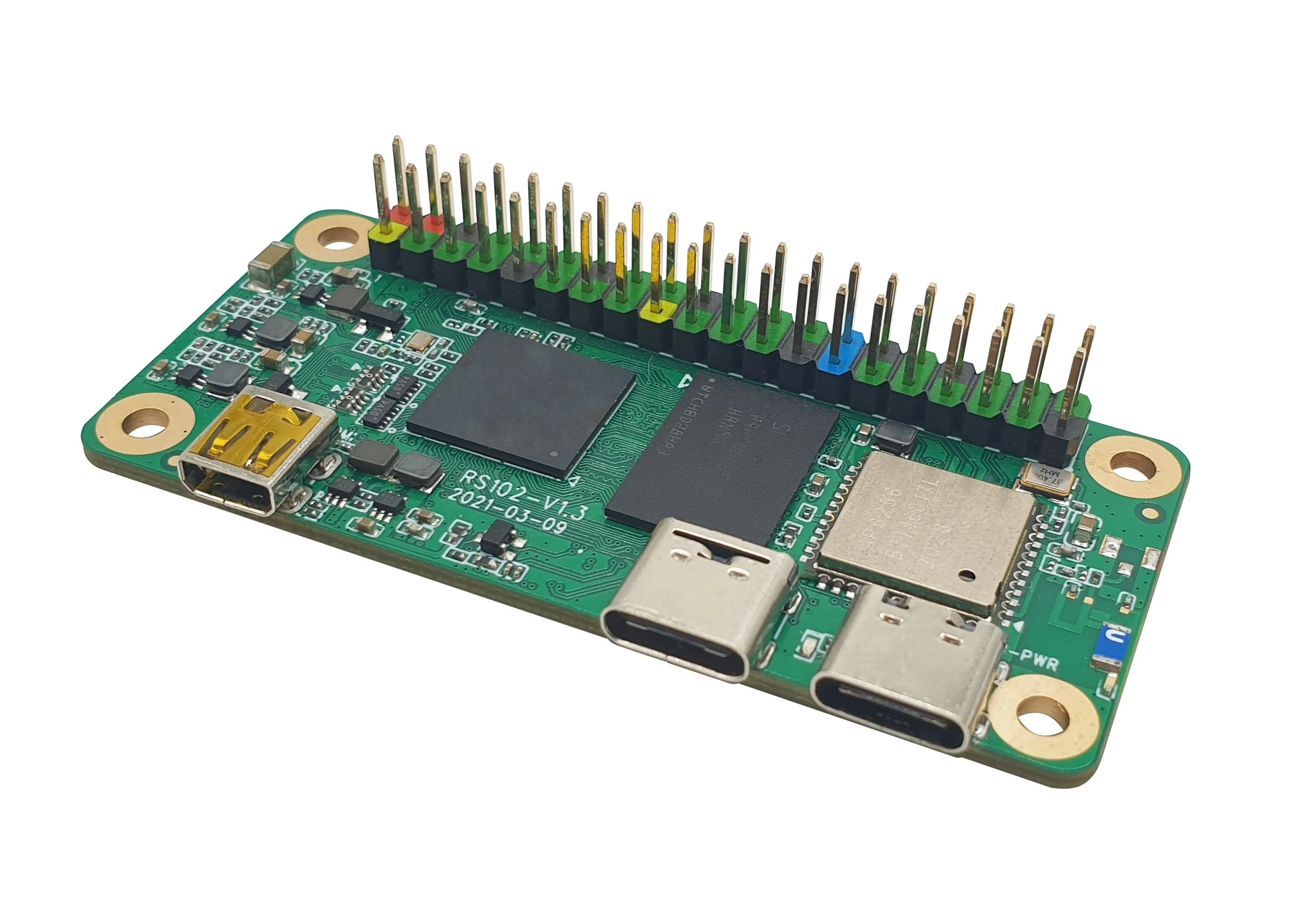

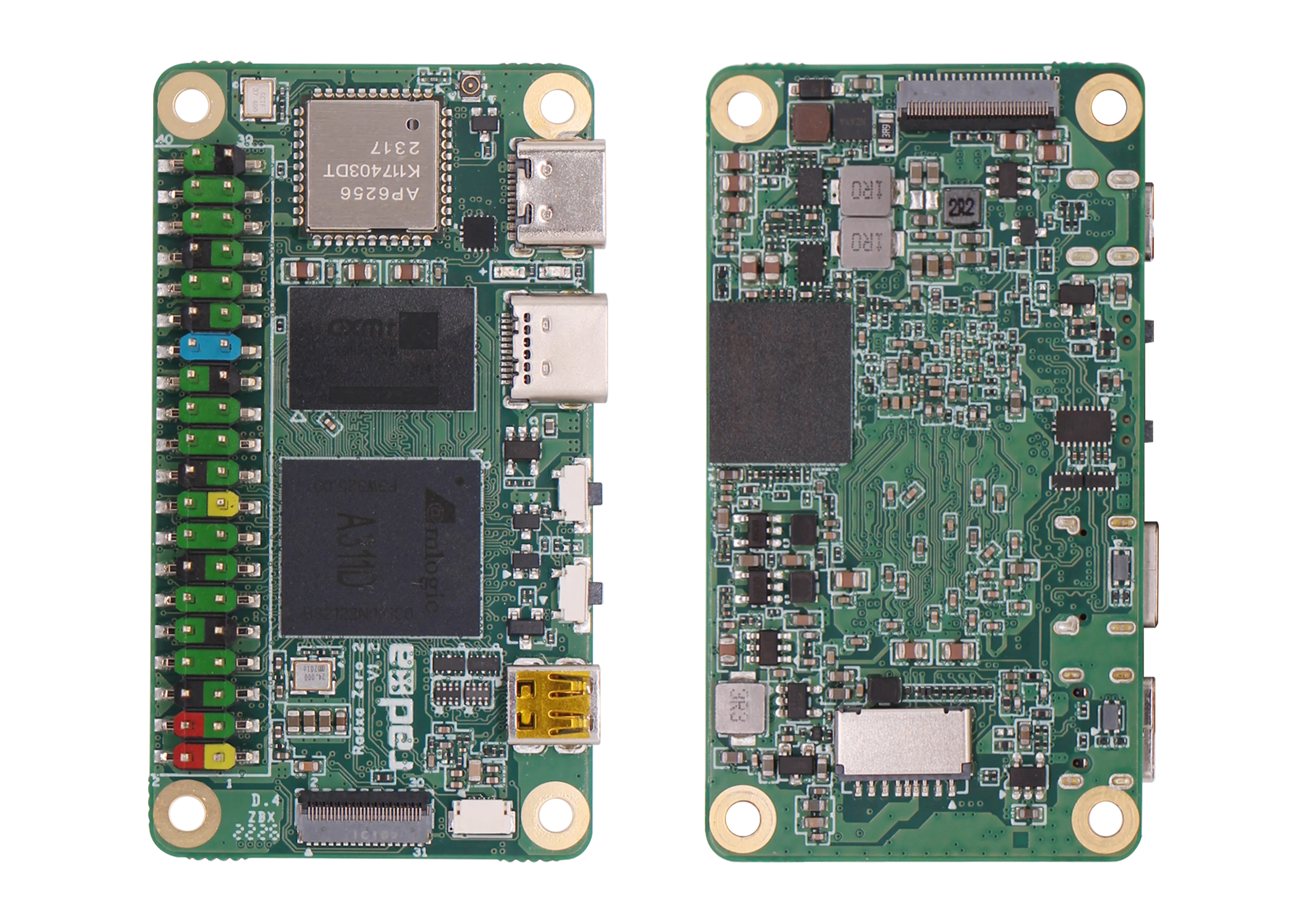

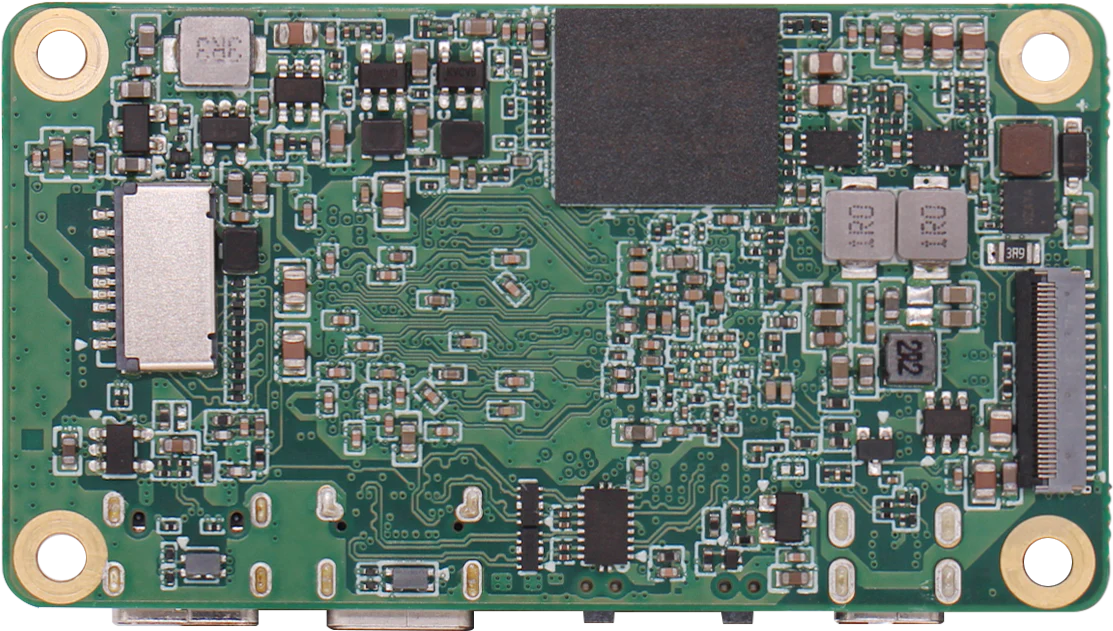

RADXA Zero 2 Pro

Amlogic  A311D 64bit hexa core based Mini SBC

Hexacore power with 4GB LPDDR4 RAM and high performance onboard storage



RADXA Zero 2 Pro product details

Amlogic A311D 64bit quad core processor

Amlogic A311D with Quad core Cortex‑A73 (Arm® v8) 64‑bit SoC @ 2.2GHz and Dual core Cortex‑A53 (Arm® v8) 64‑bit SoC @ 1.8GH

GPU

Arm® G52 MP4 GPU, supporting OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0

Memory LPDDR4

4GB 64bit dual channel LPDDR4@3200Mb/s

Wifi/BT Antenna

Wifi5 / BT5 with external antenna support

Storage eMMC 5.1

soldered high performance eMMC 5.1 with capacities of 32GB/ 64GB/ 128GB

Micro SD card

uSD slot supports up to 128G uSD card

Display Micro HDMI

HDMI 2.0, 4K@p60 (CEC)

Peripherie

H.265/VP9 (HEVC) hardware decode (up to 4Kp60)

H.264 hardware decode (up to 4Kp60)

USB 3.0 Type-C HOST x1

USB 3.0 HOST (downstream current limit app. 1A)

dedicated USB3.0 channel

USB 2.0 Type-C OTG x1

USB 2.0 OTG

MIPI Interfaces

MIPI CSI

MIPI DSI

Network

Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0

GPIO 40-pin expansion header:

- 3 x UART
- 2 x SPI bus
- 2 x I2C bus
- 3 x PWM
- 2 x ADC
- up to 22 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin

Software

- ARMv8 Instruction Set
- Debian / Ubuntu Linux support
- Android 9 support
- Hardware access/control library for Linux/Android

Others

2 button

Temp range: 0°C to 50°C

Size 65mm x 36mm



Essentials You Need

• RADXA ZERO 2 Pro
• Power adapter with USB type C port equal or larger than 15W (5V3A) (alt. 5V via GPIO PIN 2 & 4)
• MicroSD Card or onboard eMMC module
• Keyboard & Mouse
• Monitor with HDMI input
